ATEN CL3800NW 18.5" Dual Rail USB HDMI-DVI-VGA Full HD

€ 2.180,30 € 1.801,90
Levertijd: 3-5 werkdagen
18.5" Dual Rail USB HDMI-DVI-VGA Full HD

Omschrijving

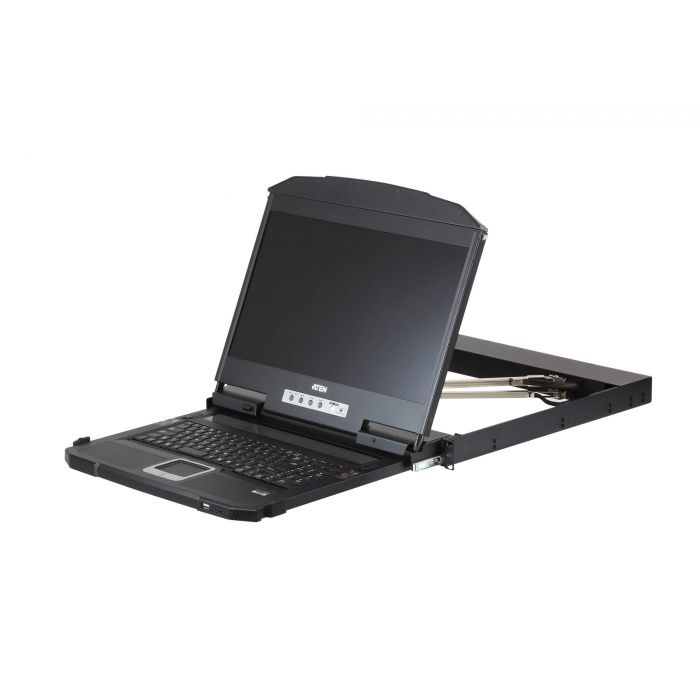

The CL3800 USB HDMI DVI VGA LCD Console is a short depth dual rail LCD KVM console featuring an 18.5 LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. In addition to saving valuable space on the rack, the CL3800 also provides a space-saving solution for special environments, such as outside broadcast vans (OB vans) and compact control rooms.

Eigenschappen

  • Space Utility Optimization
    • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
    • Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a dual rail housing with top and bottom clearance for smooth operation in a 1U high system rack
    • Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
    • Dual rail design allows LCD monitor and keyboard/touchpad modules to operate independently
    • Console lock – enables the console drawer to remain securely locked away in position when not in use



  • Remarkable Audio/Video Experience
    • Support three types of video inputs – HDMI, DVI, and VGA*
    • 18.5 LCD screen supports Full HD resolution of 1920 x 1080 @ 60Hz (CL3800NW); 18.5" LCD screen supports resolution of 1366 x 768 @ 60Hz (CL3800NX)
    • External console supports input video resolutions up to 1920 x 1200 @ 60Hz
    • Audio support for connecting speakers



  • Installation Flexibility
    • Standard rack mount kit included
    • Optional Easy Installation Rack Mounting Kit available**
    • No software required
    • Firmware upgradable
    • Supports hot-plugging



  • Reliability and Operational Versatility
    • Supports an external console with USB / HDMI / DVI / VGA connectors*
    • Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
    • Console selection via hotkey
    • Standard 105-key keyboard
    • Keyboard Language support: English(US), English(UK), French, German, German(Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish , Traditional Chinese and Turkish
    • The design complies to the UL 60950-1 and CAN/CSA standards

      * Only one video signal (HDMI, DVI-D, or VGA) can be displayed at time.
      ** The Easy Installation Rack Mounting Kit is sold separately. Contact your ATEN dealer for product information

Diagram

inhoud

1x CL3800 LCD KVM Console with Standard Rack Mount Kit1x LIN5-28V1-V11G USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft)1x LIN5-04A2-J15G Firmware Upgrade Cable1x LIN2-418K-E12G Power Cord2x L Brackets1x User Instructions

Specifications

FunctionCL3800NWCL3800NX
Computer Connections
Direct11
Console SelectionHotkeyHotkey
Connectors
KVM Ports1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Male (Blue)
1 x USB Type B Female
1 x 3.5mm Audio Jack Female (Green)
1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Male (Blue)
1 x USB Type B Female
1 x 3.5mm Audio Jack Female (Green)
Firmware Upgrade1 x 3.5mm Audio Jack Female (Black)1 x 3.5mm Audio Jack Female (Black)
Power1 x IEC 60320/C14
1 x IEC 60320/C14
External Console Ports1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x HDMI Female
1 x DVI-D Female (White)
1 x HDB-15 Female (Blue)
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
External Mouse / Peripheral1 x USB Type A Female (Front)1 x USB Type A Female (Front)
Switches
Reset1 x Semi-recessed Pushbutton1 x Semi-recessed Pushbutton
Firmware Upgrade1 x Slide Switch
1 x Slide Switch
Power1 x Rocker Switch
1 x Rocker Switch
LCD Control4 x Pushbutton4 x Pushbutton
LCD Power1 x LED Pushbutton
1 x LED Pushbutton
LEDs
Power1 x KVM Console (Dark Green)
1 x LCD (Orange)
1 x KVM Console (Dark Green)
1 x LCD (Orange)
Lock1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
1 x Num Lock (Green)
1 x Caps Lock (Green)
1 x Scroll Lock (Green)
LED Illumination Light1 x LED Illumination Light
1 x LED Illumination Light
Panel Spec
LCD Module18.5 TFT-LCD18.5" TFT-LCD
Resolution1920 x 1080 @ 60 Hz1366 x 768 @ 60 Hz
Response time20 ms5 ms
Viewing Angle178° (H), 178° (V)170° (H), 160° (V)
Pixel Pitch0.213 mm x 0.213 mm0.3 mm x 0.3 mm
Support Color16.77M colors16.77M colors
Contrast Ratio1000 : 1700 : 1
Luminance350 cd/m²200 cd/m²
Video
Input Video Resolutionup to 1920 x 1200 @ 60Hz;
1920 x 1080 @ 60 Hz, DDC2B
up to 1920 x 1200 @ 60Hz;
1366 x 768 @ 60 Hz, DDC2B
Emulation
Keyboard / MouseUSBUSB
Maximum Input Power Rating100–240V AC; 50–60Hz; 1A100–240V AC; 50–60Hz; 1A
Power ConsumptionAC110V:26.6W:140BTU
AC220V:26.8W:141BTU
AC110:18.3W:101BTU
AC220:17.8W:98BTU
Environmental
Operating Temperature0-40°C0-40°C
Storage Temperature-20-60°C-20-60°C
Humidity0 - 80% RH, Non-condensing0 - 80% RH, Non-condensing
Physical Properties
HousingMetal + PlasticMetal + Plastic
Rail TypeDual RailDual Rail
Weight9.61 kg ( 21.17 lb )9.79 kg ( 21.56 lb )
Dimensions (L x W x H)48.06 x 51.42 x 4.28 cm
(18.92 x 20.24 x 1.69 in.)
48.06 x 51.42 x 4.28 cm
(18.92 x 20.24 x 1.69 in.)
Body Dimensions(L x W x H)44.92 X 46.74 X 4.28 cm
(17.69 x 18.40 x 1.69 in.)
44.92 X 46.74 X 4.28 cm
(17.69 x 18.40 x 1.69 in.)
NoteBody Dimensions exclude I/O ports, handles, and mounting brackets.Body Dimensions exclude I/O ports, handles, and mounting brackets.
